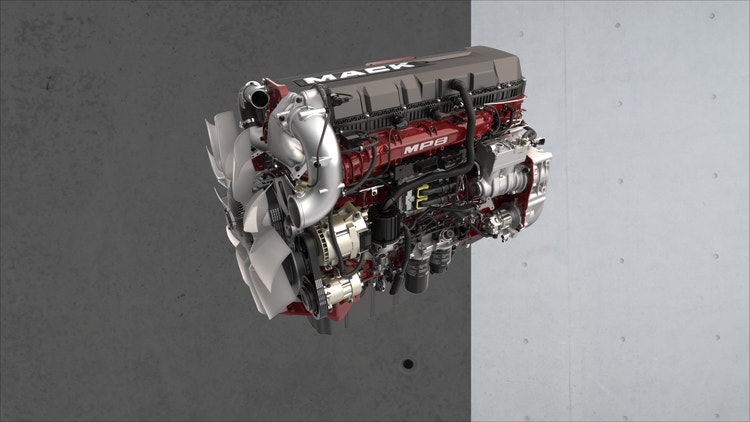

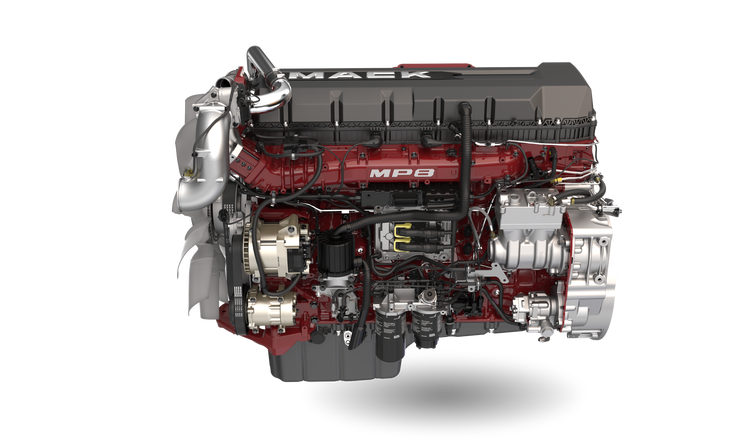

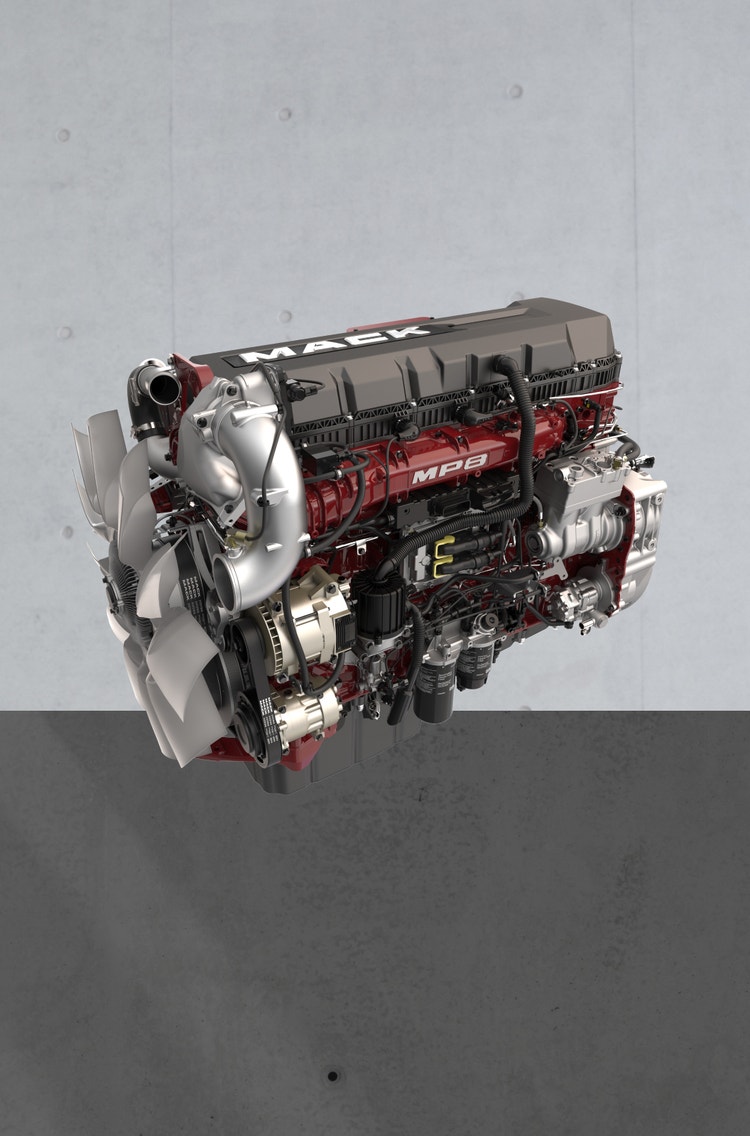

MP®8

El motor Mack MP8 impresiona kilómetro a kilómetro, cumple con la fuerza necesaria para levar incluso, las cargas más pesadas.


  • ESTE MOTOR EURO 5 DE 13 LITROS TIENE UN RANGO DE POTENCIA DESDE 340 A 440 HP Y UN RANGO DE TORQUE DE 1250 A 1620 LB-FT.
  • EL MP8 ES MÁS LIGERO Y EMITE MENOS CO2 QUE ANTES, ADICIONAL A QUE CUMPLEN CON LOS NUEVOS ESTÁNDARES DE EMISIONES.
  • *SUJETO A PREVIA APROBACIÓN DE INGENIERÍA.

Distribución equitativa de energía

MP® ofrece potencia y torque constantes en un amplio rango de funcionamiento que puede ajustarse a sus necesidades para la combinación correcta de potencia y alta eficiencia de combustible.

Ahorro de peso

Cuanto más ligero sea el motor, más se puede cargar. El MP®8 ahora pesa 88 libras menos que la versión anterior, lo que significa más carga útil por viaje día tras día, más una mejor eficiencia operativa y más ingresos.

Ensamblado en los Estados Unidos

Estamos orgullosos de nuestra producción en Estados Unidos. Todos los motores y transmisiones Mack se ensamblan en Hagerstown, MD, EE.UU.

Especificaciones - IMPULSIÓN DIRECTA

#id-1

Especificaciones de la impulsión directa

#id-2

Especificaciones del motor

TIPO

Inyección directa diesel

NÚMERO DE CILINDROS

6, en línea

BORE & STROKE

5.16 "x 6,22 " [131mm x 158m]

DESPLAZAMIENTO

780 [13L]

RATIO DE COMPRESIÓN

16:1

ORDEN DE DISPARO

1-5-3-6-2-4

AUMENTO DE TORQUE

89%

ACOPLAMIENTO DEL EMBRAGUE

1215 lb-ft [1647 N • m] @ 800 rpm

VELOCIDADES OCIOSAS

Baja: 600 rpm ajustable – alta: 2100 rpm

FRENO DE MOTOR RETARDANDO ENERGÍA

500 HP [372 kW] @ 2100 rpm

PESO SECO (APROX)

R-Reverse / N-Nuetral / D-Drive / M-Manual

LUBRICACIÓN

Splash & Pressure

Model Year 2011 and Newer Engines

Using Maack EOS-4.5 Premium Oil

NORMAL DUTY

Greater than 6 mpg Less than 39L/100km

HEAVY DUTY

Greater than 5 mpg Less than 50L/100km

SEVERE DUTY

Less than 5 mpg Greater than 50L/100km

MP® 7 / MP® 8 or MP®10 with 42 L / 44 Qt Oil Pan:

Mack EOS-4.5* Premium Oil, Filters and Fuel Filters (Replace)

MILES 60,000 / 55,000** 45,000 / 40,000** 35,000 / 30,000**
KM 95,000 / 90,000** 70,000 / 65,000** 55,000 / 50,000**
HOURS 1,700 / 1,600** 1,300 / 1,200** 825 / 750**

MP® 10 with 52 L / 55 Qt Oil Pan:

Mack EOS-4.5* Premium Oil, Filters, and Fuel Filters (Replace)

MILES 65,000 / 60,000** 50,000 / 45,000** 40,000 / 35,000**
KM 105,000 / 95,000** 80,000 / 70,000** 65,000 / 55,000**
HOURS 1,750 1,300 825

Model Year 2011 to 2016 Engines Using Mack EOS-4 Premium Oil

MP® 7 / MP® 8 or MP®10 with 42 L / 44 Qt Oil Pan:

Mack EOS-4* Premium Oil, Filters and Fuel Filters (Replace)

MILES 45,000 35,000 25,000
KM 75,000 60,000 45,000
HOURS 1,300 1,000 625

MP® 10 with 52 L / 55 Qt Oil Pan:

Mack EOS-4* Premium Oil, Filters and Fuel Filters (Replace)

MILES 50,000 45,000 35,000
KM 80,000 75,000 60,000
HOURS 1,300 1,000 625

MACK PREMIUM LONG LIFE COOLANT

Mack Premium Long-Life Coolant (Replace) MILES 1,000,000
KM 1,600,000
HOURS 96 months
Mack Premium Long-Life Coolant Filter (Replace) MILES 150,000
KM 240,000
HOURS 12 months

MACK PREMIUM FULLY FORMULATED COOLANT

Mack Premium Fully Formulated Coolant (Replace) MILES 300,000 150,000
KM 500,000 240,000
HOURS 24 months 12 months
Mack Premium Fully Formulated Coolant Filter (Replace) TIME At every oil change

MISCELLANEOUS

Valve Adjustment MILES 150,000 / then every 300,000
KM 240,000 / then every 500,000
TIME 12 months / then every 24 months
Fan and Accessory Drive Belt (Replace) MILES 300,000 150,000
KM 500,000 240,000
TIME 36 months 12 months
Mack Premium Air Filter and Fuel Tank Ventilation Filter (Replace) TIME Maximum 24 months

TRANSMISSION AND AXLES

NORMAL DUTY HEAVY DUTY SEVERE DUTY

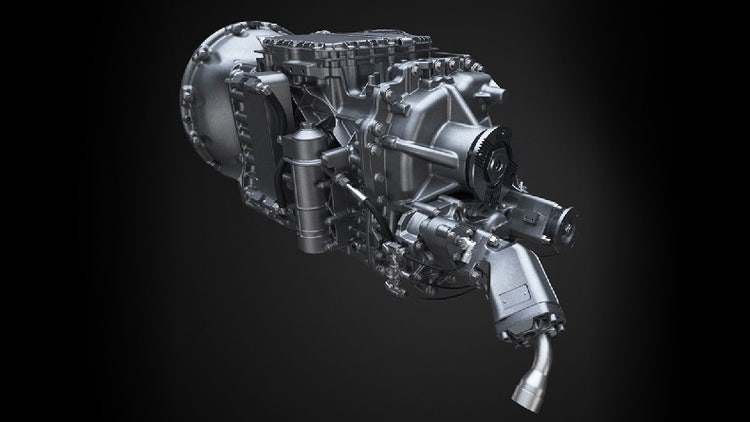

m DRIVE TRANSMISSION
m DRIVE
Transmission oil and filter (Replace)
Oil quality: Mack Transmission Oil 97318*
MILES 500,000 Not Allowed
KM 800,000
TIME 60 months
mDRIVE; mDRIVE Severe Duty and mDRIVE with Crawler Gears

Transmission oil and filter (Replace)

Oil quality: Mack Transmission Oil 97319*

MILES 500,000 250,000
KM 800,000 400,000
TIME 60 months 2500 h
AXLES
Rear Axle Oil (Replace) MILES 500,000 80,000
KM 800,000 125,000
TIME 36 months 12 months

CHASSIS

NORMAL DUTY HEAVY DUTY SEVERE DUTY
Mack Premium Chassis Lubrication MILES 15,000 10,000
KM 24,000 16,000
TIME 12 months
Electrical System Connectors (Check) TIME Every 6 months.
Power Steering Fluid and Filter (Replace) MILES 150,000
KM 240,000
12 months
Air Dryer Coalescing Cartridge (Replace) MILES 150,000
KM 240,000
TIME 12 months
